KRYSTAL
PROVEN WI TECHNOLOGY
WI PERFORMANCE MANAGEMENT
Now, introducing Krystal. The smart water injection analysis tool. Krystal has proved its capability in previous 2 WI performance management projects, ... MPM 2015 (9 WI Programs), SWIFT 2018 (6 WI Programs) and SWIFT 2020(30 WI Programs).Built from scratch, Krystal is the first ever software developed worldwide specifically for water injection performance management. A comprehensive charting engine is utilized to link and integrate multivariant data with just few clicks. Krystal identify patterns and trends, and visualize analyzed data to give better understanding of the water injection facility performance. With Krystal we can analyze multiple water injection locations data and then globalize findings to stakeholders (via 3600 reviews) on the fly. Instead of manually compiling data, Krystal allows engineering resources to focus on analysis. We can eliminate the delays, gaps, errors and redundancies of manual data handling. Instead of using one central server system, Krystal stored data in distributed databases in the Cloud, to create a robust system which is accessible anywhere, anytime.
Actionable Insight Through Data Fusion
In general, data fusion is the process of analyzing raw data from different angles, then summarized and visualized it into useful information. ... Krystal is designed to offer this functionality to visualize valuable insight of water injection data. Huge dataset is overwhelming and making things slow. 3Vs(volume, variety and velocity) are three defining properties of data used to process big data fusion. This determines the effectiveness of information we analyze by focusing on the right data in a timely basis. Krystal can identify trends and patterns, and correlates this to the operating conditions and events existing in the water injection facility.While Krystal plots the numbers according to pre-set algorithm, our experienced Analysts interpret and integrate the data to gain valuable actionable insights.
ENERGIZING TECHNOLOGY
Krystal is very accessible (simple, direct interface with users), it tends to have shorter learning curve, thus a higher adoption rates because... the user experience is more intuitive. Since the user is already familiar to the apps system process and functionality, the learning process is accelerated. The low entry cost of Krystal is especially significant considering the high cost of adopting technical softwares. In addition, no infrastructure needed to deploy Krystal. The data feed into Krystal via email system. Instead of having central server, Krystal used distributed database system. The data act as fuel that runs Krystal. All data reside on individual PC which avoid whole system breakdown if the central is down or crash.
KRYSTAL
WI DIGITALIZATION
Indepth Analysis
Indepth Analysis

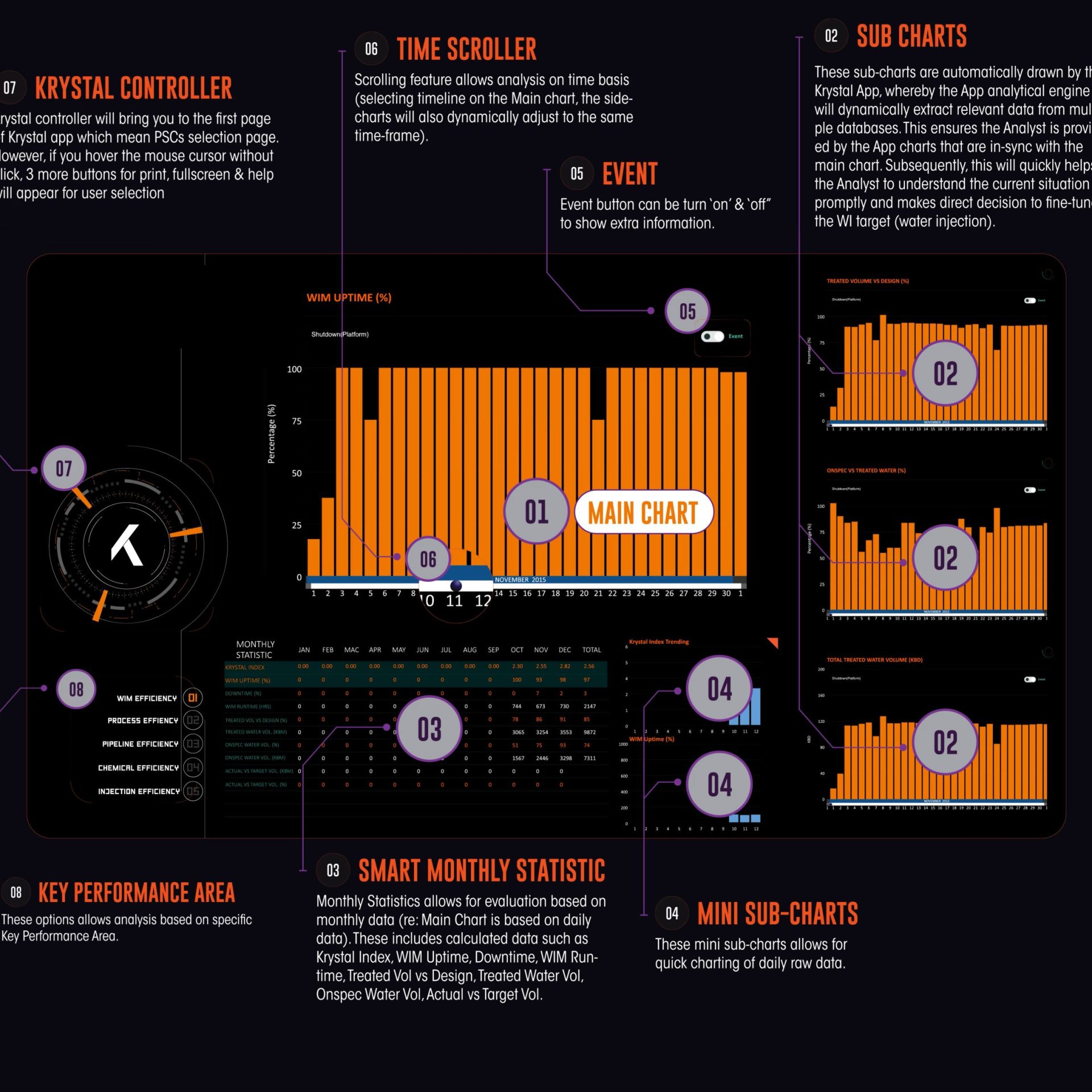

Krystal is an analytical software used for this assessment. Through on-the-fly data integration, Krystal allows us to engage and interrogate the data, to explore using more... than 200 pre-defined technical charts, to uncover patterns and subsequently to unlock the insight within the data. The key emphasis is to allow us to leverage and extract relevant actionable intelligence related to operations efficiency. Overall, Krystal helps determine the optimal program to maximize water injection reservoir ultimate recovery at optimal cost. In brief, the benefits afforded by Krystal includes the following:

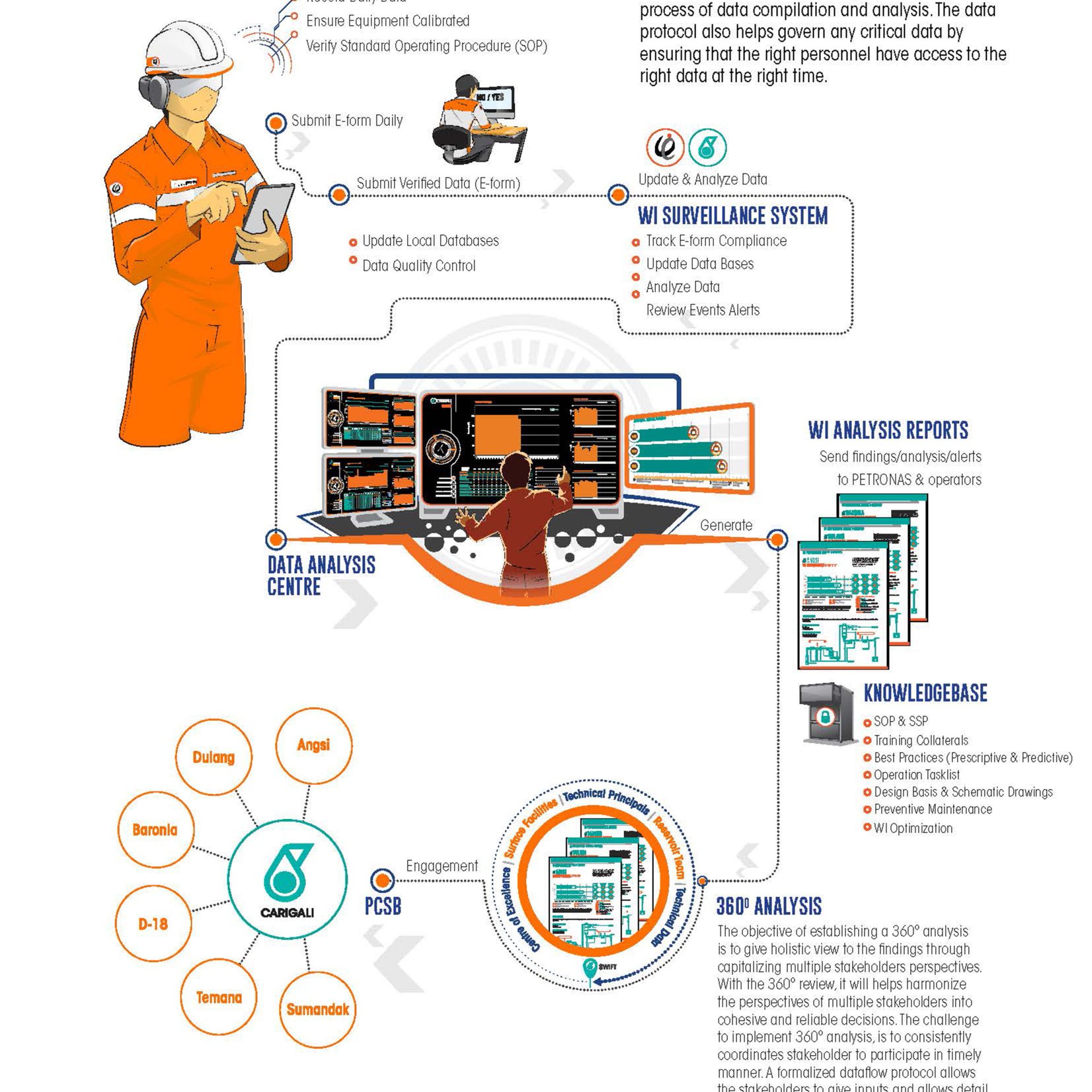

Krystal Data Protocol
Krystal Hex Engine
100% Malaysia Technology
For more than 10 years, this technology by far has demonstrated its capability to concurrently manage multiple WI Programs at one go. Krystal is heavily applied...during two main occasions: WI Assessment by Malaysia Petroleum Management (MPM) in 2015 and SWIFT itself in 2018. Based on recorded data for MPM 2015, a total number of 730,000 data points were analysed using Krystal, covering 9 WI Programs. As for SWIFT 2018, a total of 284,769 data points were analysed across 5 WI Programs. Both MPM 2015 and SWIFT 2018 were done over a period of only 3 months, reflecting just how massive the database would be when thirty Water Injection Programs surveillance and operational data are accumulated and collated for a minimum of 12 months duration. Despite the amount of data processed, Krystal proved its reliability to measure efficiencies and work on correct data to generate correct solutions. With Krystal, Client gains TRUE control over its WI operation and surveillance, hence decisions.
Powerful Customization

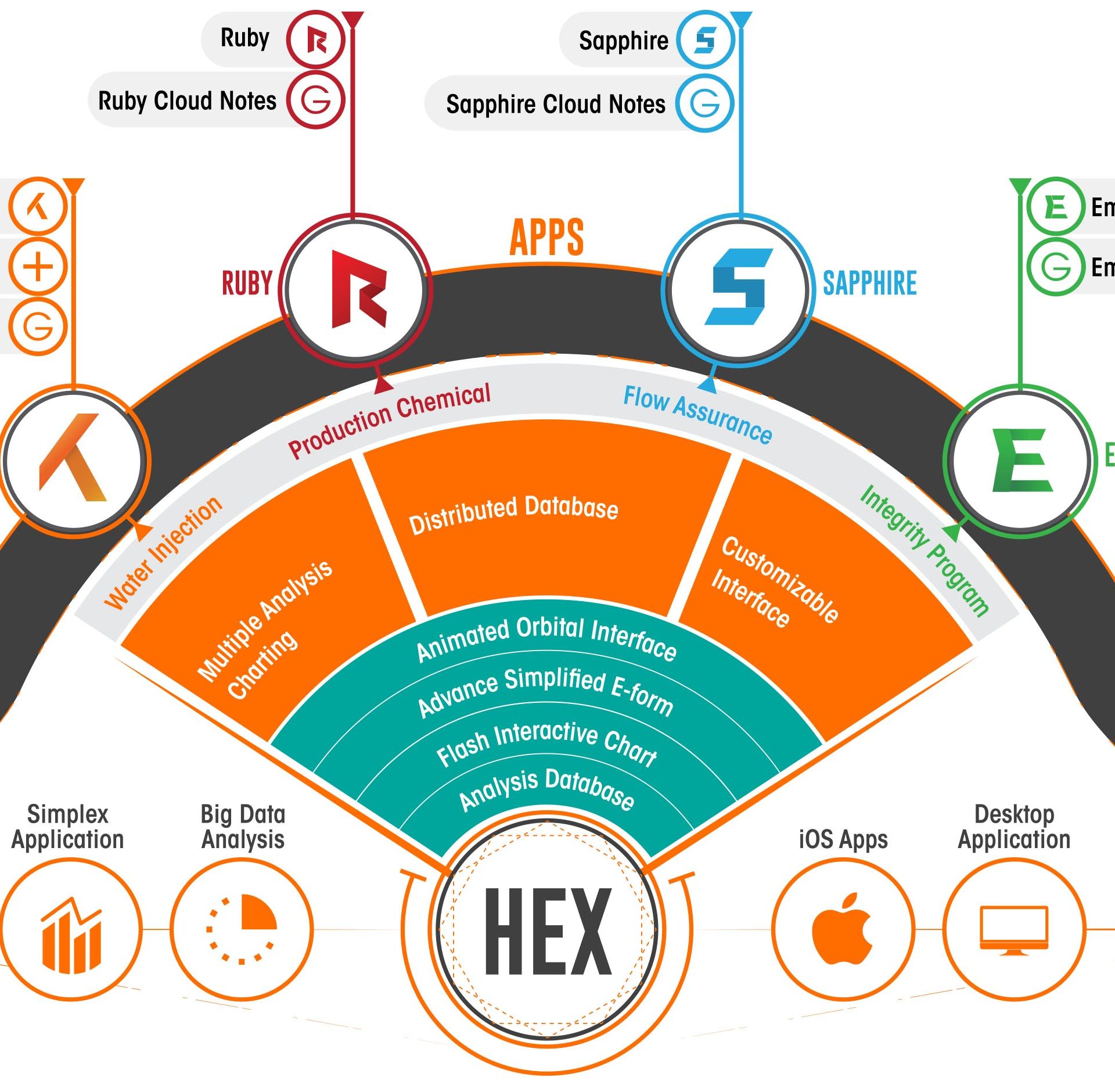

The software is 100% in-house developed by Vision Petroleum. Customization and personalization can be delivered quickly and fast. Furthermore, Krystal can ...be tweaked based on functional requirements eg. for planner, surveillance, Operation etc. Hence, Krystal is being continuously enhanced to meet the changing needs of clients. More features and additional custom charts are added to improve the user’s experience with the apps. The three cores of HEX engine are distributed databases, orbital interface and multiple charting module. Standardization of the apps internal architecture, makes it simpler and quicker to maintain. Whenever the HEX engine is enhanced, the new features will automatically be updated in all the apps simultaneously. The data acts as fuel that runs the HEX engine. The shared databases also leads to standardized data QC and avoid data redundancy. The volume of data is kept light and tight, to establish high velocity data transfer. The HEX engine integrate all the apps to ensure the system is seamless. As Krystal is very accessible (simple, direct interface with users), it tends to have shorter learning curve, thus a higher adoption rates because the user experience is more intuitive. Since the user is already familiar to the apps system process and functionality, the learning process is accelerated. The low cost of entry of Krystal is especially significant considering the high cost of adopting technical softwares.
R&D AUGMENTED REALITY
WI Data Center
24/7 LINE-OF-SIGHT (LOS)
QUICK AND EASY ACCESS WITH KRYSTAL PLUS
Like most other technology applications, non-stop research and development require continuous work. Provided data quality is maintained, Krystal ... becomes smarter as more data being fed into its databases. In view of tireless improvement efforts, with strategic resources,Vision has definitely a lot more to offer. The existing Krystal will be expanded to the mobile management dashboard with quick and easy access via mobile app. Enhanced user-interface utilizing gestures will be introduced for Krystal Plus and Krystal Lite. As the demand for Dashboard increases, Krystal Plus will soon be introduced on mobile platform, making it the first comprehensive WI App ever available in the market. This is potentially a high rewarding value for PETRONAS - both short and long term.
ALMOST ZERO USER TRAINING
REQUIRED
Krystal Plus is powerful and intuitive. We design it for one main fundamental - enhancing efficiency. WI critical data are carefully defined, categorized,...and selected before they are visualized interactively for user to capture. Software/app familiarization is then extremely reduced, if not eliminated. On Contrary, other softwares may require rigorous trainings for user to get familiar with. To master them will take even longer period of time, potentially becoming costly and unproductive. Krystal Plus is set to work seamlessly and generate a mobile experience that delivers the information when most needed.
For more details, please email us.
